HM-TK430A Card paper pasting machine product introduction

HM-TK430A card paper pasting machine is an automated
equipment mainly used for pasting linings on top and bottom
cover conjoined boxes.
This machine adopts the working method of roller gluing
and intermittent clamping and box feeding. The operation is
simple, the work is stable and efficient, the entire machine is
controlled by PLC, and the touch screen is used to set working
parameters.

HM-TK430A Card paper pasting machine unit features and standard equipment

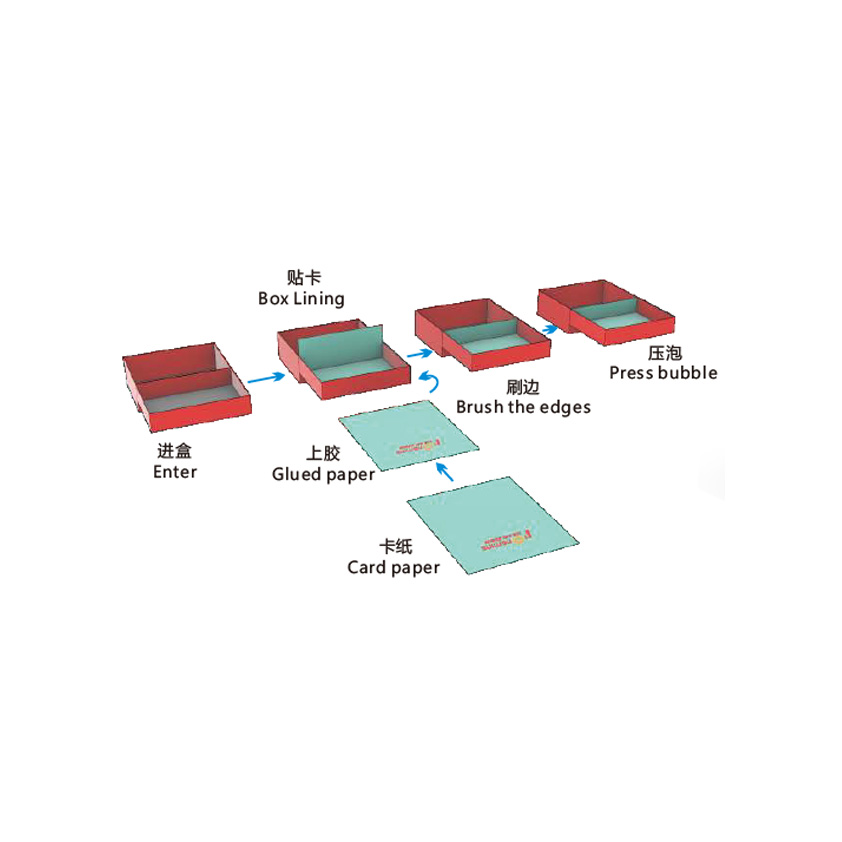

1. The machine is in assembly line mode, with four linear stations;
2. As soon as the work station enters the box, calibrate the position;
3. Calibrate the jammed paper in the second station and apply glue to the inner lining;
4. Brush the edges of the joints between the floor box and the floor box for three days at the work station;
5. Press the bottom bubble at the fourth station;
6. The whole machine adopts PLC automatic control, and the touch screen human-machine interface sets
working parameters;

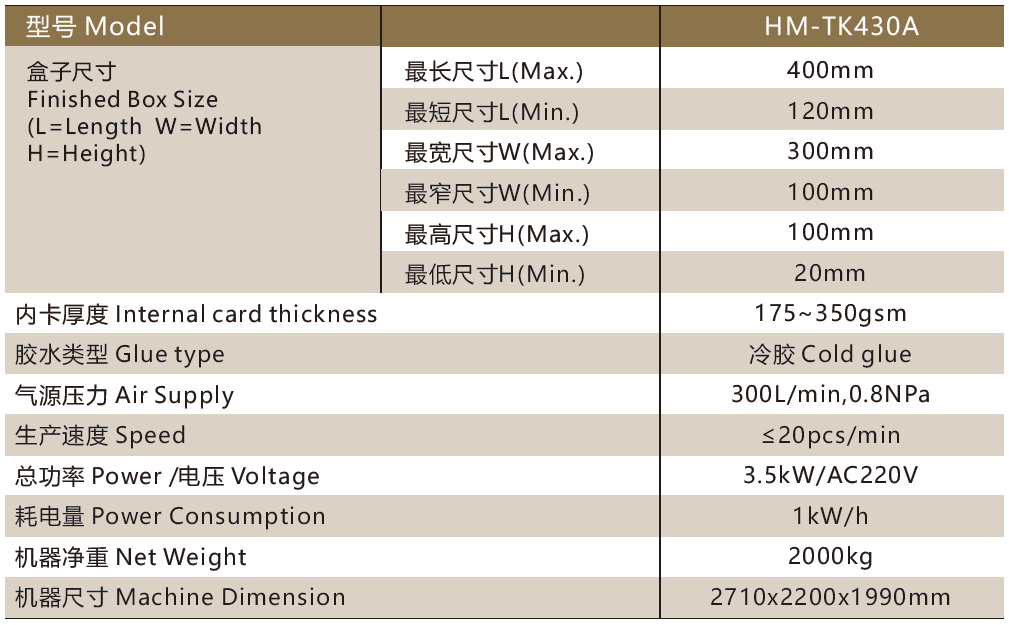

The main technical parameters of HM-TK430A Card paper pasting machine
